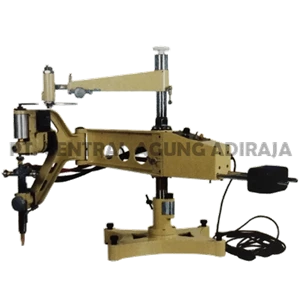

KAIERDA Profiling Gas Cutting Machine CG2-150/150A Specification
Product Model______________: CG2-150 ________________ CG2-150A
Rated Input Voltage_________: 220V 1 Phase ___________ 220V 1 Phase
Cutting Thickness___________: 6-100 mm ______________ 6-100 mm
Cutting Speed______________: 50-750 mm/min _________ 50-750 mm/min
Diameter Circle Cutting_____: 20-600 mm _____________ 20-1800 mm
Length Line Cutting_________: 1200 mm _______________ 1650 mm
Max.size Cutting Square____: 500x500 mm ___________ 1270x1270 mm
Max.size Cutting Rectangle__: 400x900 450x750 mm __ 1700x340 500x1650 mm
Dimensions (LxWxH)_______: 1190x335x800 mm ______ 1390x335x800 mm
Weight_____________________: 56.5 kg ____________________ 61.5 kg
